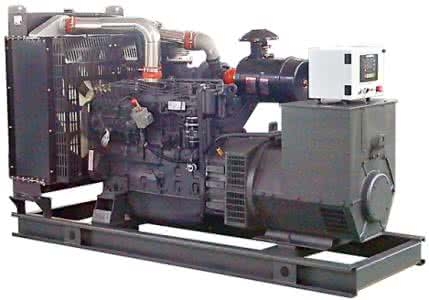

| 上柴股份发电机组型谱 | |||||||||
| 序号 | 机组型号 | 发动机型号 | 发动机功率 | 机油容量 | 缸数 | 缸径行程mm | 发动机配置说明 | 机组重量Kg | 机组尺寸长x宽x高mm |
| 1h/KW | |||||||||
| 1 | SG60GF | SC4H95D2 | 68 | 12L | 4 | 105x124 | 电子调速SAE3#，11.5 | 1100 | 2000x1000x1500 |
| 2 | SG75GF | SC4H115D2 | 86 | 12L | 4 | 105x124 | 电子调速SAE3#，11.5 | 1100 | 2000x1000x1500 |
| 3 | SG100GF | SC4H160D2 | 115.5 | 12L | 4 | 105x124 | 电子调速SAE3#，11.5 | 1100 | 2000x1000x1500 |
| 4 | SG120GF | SC4H180D2 | 132 | 12L | 4 | 105x124 | 电子调速SAE3#，11.5 | 1100 | 2000x1000x1500 |
| 5 | SG140GF | SC7H220D2 | 165 | 16L | 6 | 105x124 | 电子调速SAE3#，11.5 | 1400 | 2500x1000x1600 |
| 6 | SG140GF | SC8D220D2 | 160 | 18L | 6 | 114x135 | 电子调速SAE2#，11.5 | 1500 | 2600x1000x1700 |
| 7 | SG150GF | SC7H230D2 | 170.5 | 16L | 6 | 105x124 | 电子调速SAE3#，11.5 | 1400 | 2500x1000x1600 |
| 8 | SG160GF | SC7H250D2 | 184.8 | 16L | 6 | 105x124 | 电子调速SAE3#，11.5 | 1400 | 2500x1000x1600 |
| 9 | SG180GF | SC8D280D2 | 204 | 18L | 6 | 114x135 | 电子调速SAE2#，11.5 | 1500 | 2600x1000x1700 |
| 10 | SG200GF | SC9D310D2 | 228 | 18L | 6 | 114x144 | 电子调速SAE2#，11.5 | 1500 | 2600x1000x1700 |
| 11 | SG200GF | SC9D340D2 | 255 | 24L | 6 | 114x144 | 电子调速SAE2#，11.5 | 1700 | 2700x1000x1700 |
| 12 | SG200GF | SC13G355D2 | 260 | 36L | 6 | 135x150 | 电子调速SAE1#，14 | 3200 | 2900x1100x1900 |
| 13 | SG250GF | SC13G420D2 | 308 | 36L | 6 | 135x150 | 电子调速SAE1#，14 | 3200 | 2900x1100x1900 |
| 14 | SG300GF | SC12E460D2 | 338 | 36L | 6 | 128x153 | 电子调速SAE1#，14 | 3200 | 2900x1100x1900 |
| 15 | SG350GF | SC15G500D2 | 373 | 36L | 6 | 135x165 | 电子调速SAE1#，14 | 3200 | 2900x1100x1900 |
| 16 | SG400GF | SC25G610D2 | 445 | 64L | 12 | 135x150 | 电子调速，SAE1/2#，14 | 4200 | 3600x1800x2000 |
| 17 | SG450GF | SC25G690D2 | 505 | 64L | 12 | 135x150 | 电子调速，SAE0#，18 | 4200 | 3600x1800x2000 |
| 18 | SG500GF | SC27G755D2 | 560 | 64L | 12 | 135x155 | 电子调速，SAE0#，18 | 4200 | 3600x1800x2000 |
| 19 | SG550GF | SC27G830D2 | 610 | 64L | 12 | 135x155 | 电子调速，SAE0#，18 | 4200 | 3600x1800x2000 |
| 20 | SG600GF | SC27G900D2 | 662 | 64L | 12 | 135x155 | 电子调速，SAE0#，18 | 4200 | 3600x1800x2000 |
| 21 | SG700GF | SC33W990D2 | 726 | 96L | 6 | 180x215 | 电子调速，SAE0#，18 | 7000 | 4000x1600x2300 |
| 22 | SG800GF | SC33W1150D2 | 860 | 96L | 6 | 180x215 | 电子调速，SAE0#，18 | 7000 | 4000x1600x2300 |
